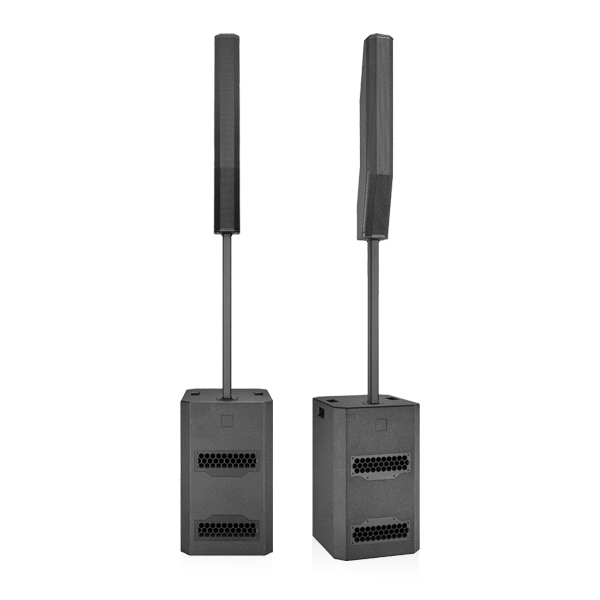

LA0316 Active Column Array Speaker System with 12 Inch Subwoofer - 翻译中...

คุณสมบัติของ

● 8 × 3” full-range drivers deliver clear and natural mid-high frequencies.
● 12” subwoofer provides deep and powerful low-frequency performance.
● Built-in DSP with FIR filtering ensures precise and optimized sound tuning.
● Supports PEQ, crossover, delay, limiter, phase, and gain adjustment.
● High SPL output suitable for professional sound reinforcement applications.
● Supports XLR and TRS audio input connections.
● Built-in USB playback with MP3 format support.
● Integrated Bluetooth for wireless audio streaming.
● Supports TWS function for wireless stereo linking between two speakers.
● DSP control via PC software for flexible parameter configuration.
● Real-time monitoring of input/output levels and system status.
● Supports preset saving, recall, upload, and download.
● Dual voltage selection (110V / 220V) for flexible power compatibility.
● Built-in limiter protection ensures safe and stable operation.
● Slim column design with wide horizontal sound coverage.
● Compact structure for easy transport and installation.

ติดต่อตอนนี้เลย ฝากข้อความไว้ ดาวน์โหลดแอลอีดี

บทนำนำ
ข้อมูลจำเพาะ

翻译中...

Model	LA0316
3”×8 Column Speaker
Drive Unit	MF: 3”×8 (25mm Voice Coil)
Rated Power	160W
Program Power	320W
Peak Power	640W
Impedance	4Ω
Frequency Response	98Hz~16kHz
Sensitivity	96dB
Max. SPL	118dB
Signal Input	Dedicated Link Connector
Directivity Angle	100°(H)×20°(V)
Product Dimensions (H×W×D)	810×105×140mm
Package Dimensions (H×W×D)	860×360×240mm (2PCS/CTN)
Net Weight	6.5kg
Gross Weight	18kg
Single 12” Subwoofer
Drive Unit	LF: 12”×1 (75mm Voice Coil)
Rated Power	300W
Program Power	600W
Peak Power	1200W
Impedance	4Ω
Frequency Response	38Hz~200Hz
Sensitivity	96dB
Max. SPL	121dB
Signal Input	2×XLR / TRS
Supported Function	BT / USB / MP3 / TWS
Product Dimensions (H×W×D)	600×365×450mm
Package Dimensions (H×W×D)	686×435×520mm
Net Weight	21kg
Gross Weight	24kg

ก่อนหน้าก่อนหน้า: DSP1280 800W+800W Professional Active Line Array Speaker System - 翻译中...

ถัดไปถัดไป: DSP1580 Active Line Array PA Speaker System - 翻译中...

ผลิตภัณฑ์ที่เกี่ยวข้อง

ซับวูฟเฟอร์อาร์เรย์สายพาสซีฟกันน้ำ LA1421SFJanuary 31, 2024LA1421SF เป็นซับวูฟเฟอร์แบบพาสซีฟไลน์อาร์เรย์แบบกันน้ำที่สร้างขึ้นเพื่อการใช้งานที่หลากหลายทำจากไม้อัดพิเศษที่ทนทานและติดตั้งอุปกรณ์เสริมโลหะอลูมิเนียมคุณภาพสูง...view
PL206 Passive Line Array Full-Range Speaker - 翻译中...March 27, 2026The PL206 is a compact line array speaker engineered to deliver strong output with clear and well-defined sound across a frequency range of 150 Hz to 18 kHz.It is equipped with dual 6.5-inch low-frequ...view

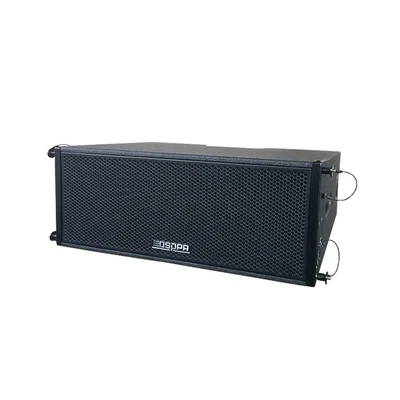

PL210 Passive Line Array Full-Range Speaker - 翻译中...March 27, 2026The PL210 is a high-performance line array module designed to deliver powerful sound reinforcement with excellent clarity and balance across a wide frequency range of 50 Hz to 18 kHz.It is equipped wi...view
